1986 LX 5.0 Pro Touring

[347HO]

I recently completed my Mustang project.
It took me 9 years of Saturdays to do it.

302 based 347ci half filled HECHO en MEXICO
Ported Trick Flow with shaft rockers, titanium valved.
Custom Solid Roller Cam .688/.673 on 1.7 ratio by CPG
Fabricated equal length 2" headers to 4" collectors to 4" aluminum pipe to 4" muffler with turn outs
Wilson prepped Victor Jr manifold
Custom 4150 by Patrick @ Pro systems
MSD hall affect digital ignition
9000rpm pill
Fabricated motor plates
TKO 600 mounted on fabricated crossover
Scribner custom 8.8 rear with 3.70 gears
Fabricated 4 link on adjustable Koni coilovers.
Moser 31 axles shortened 6.0"
FR500 17"x9.0" on 275/40
FR500 17"x10.5" on 315/35
Fabricated tubs
Wilwood disc 13" fronts, 12" rears.
Fabricated Full chromoly cage
Lexan front and sides, glass rear.
Boss hoods, glass 4" hood.
Self painted sterling silver with black accent to match my F150.



[347HO]

Right out of the painpainyt booth



[347HO]

Spraying color



[347HO]

Final engine install... It fits!



[347HO]

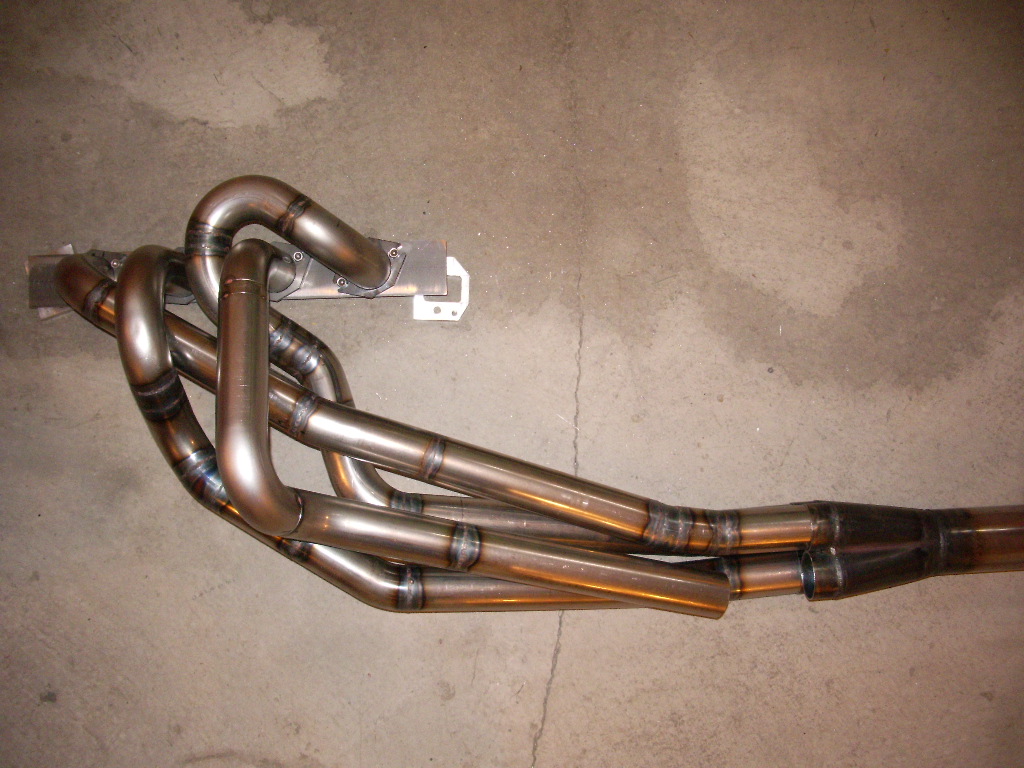

Tigging up my fabricated headers



[347HO]

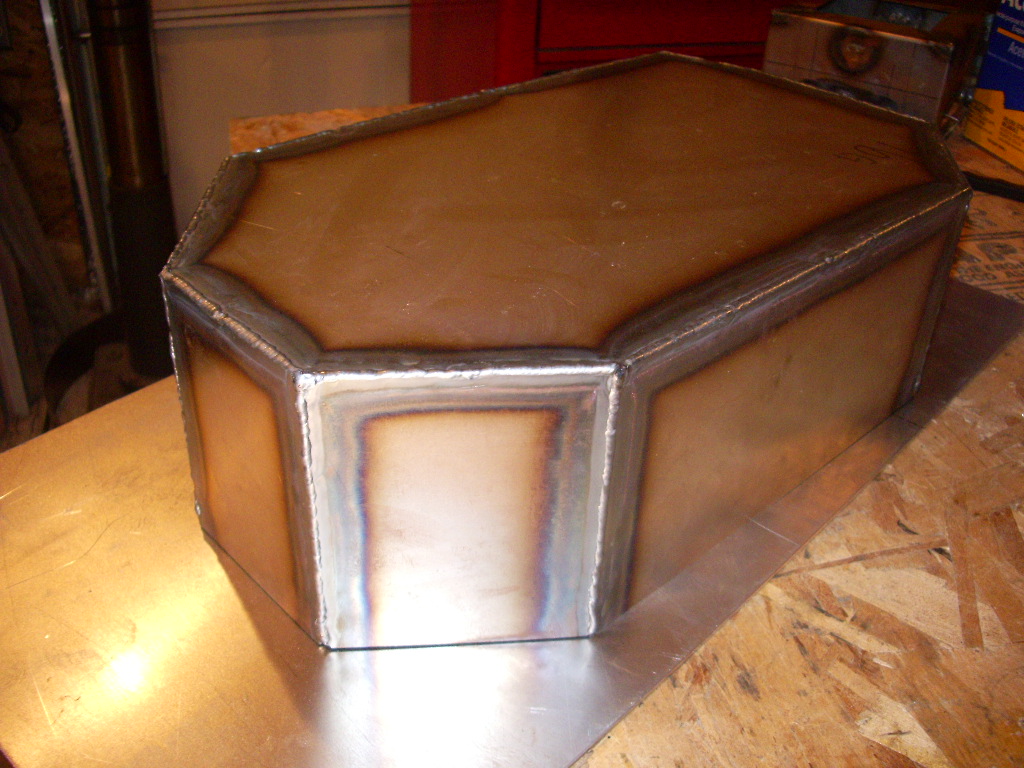

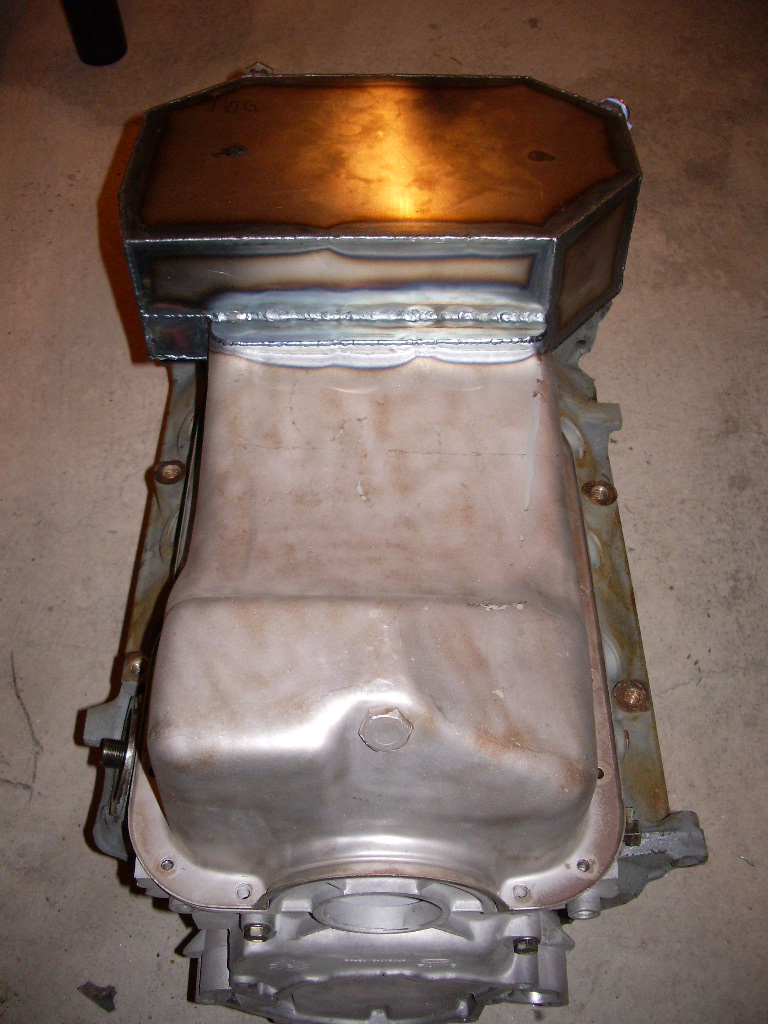

Fabricating my oil pan



[347HO]

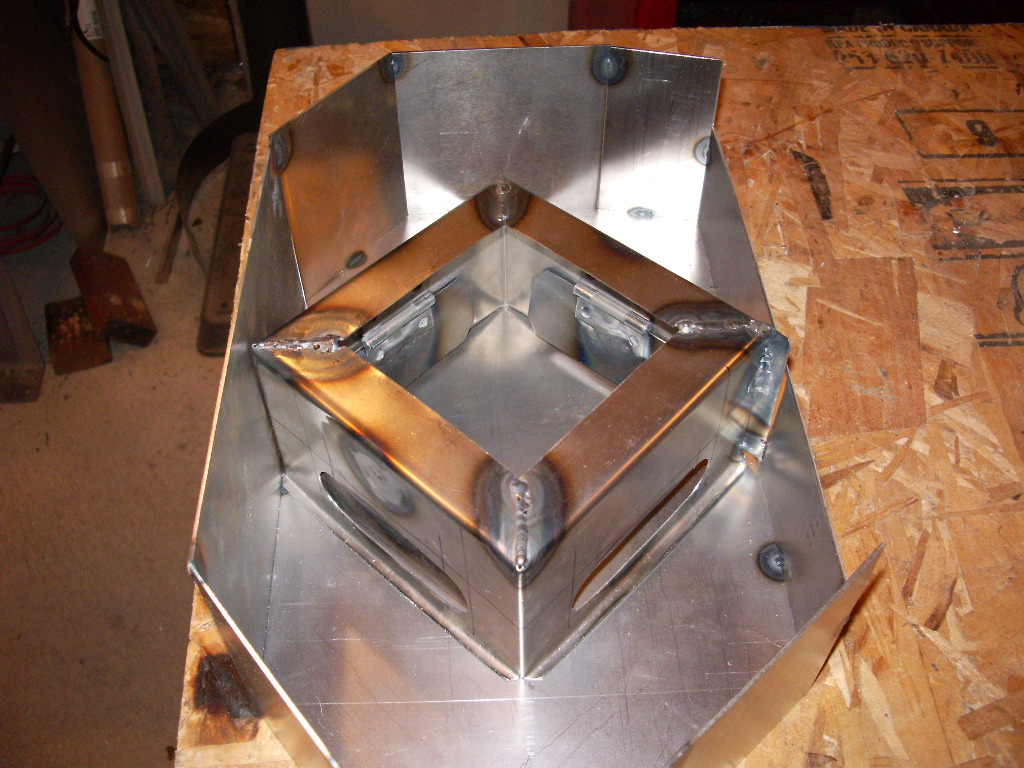

Fabing oil doors for the pick up



[347HO]

Mocking it up for horn clearance to floor



[347HO]

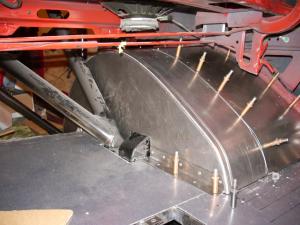

Fabricating the tubs



[broncojunkie]

very nice!



[347HO]

very nice!

Thx bronco!



[347HO]

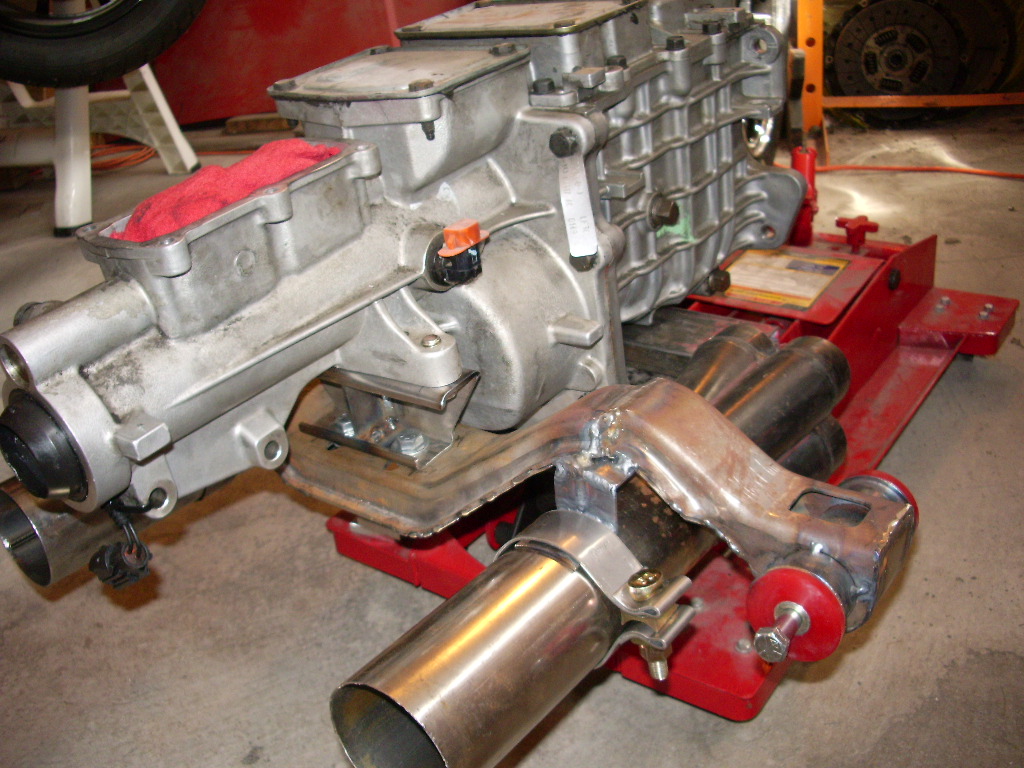

Boxed-in and modified tko600 cross member. Its solid mount as you can see, but I decided on poly bushings to the frame side. I was thinking if I have minimal chassis flex, it won't snap my trans tail section lugs.



[347HO]

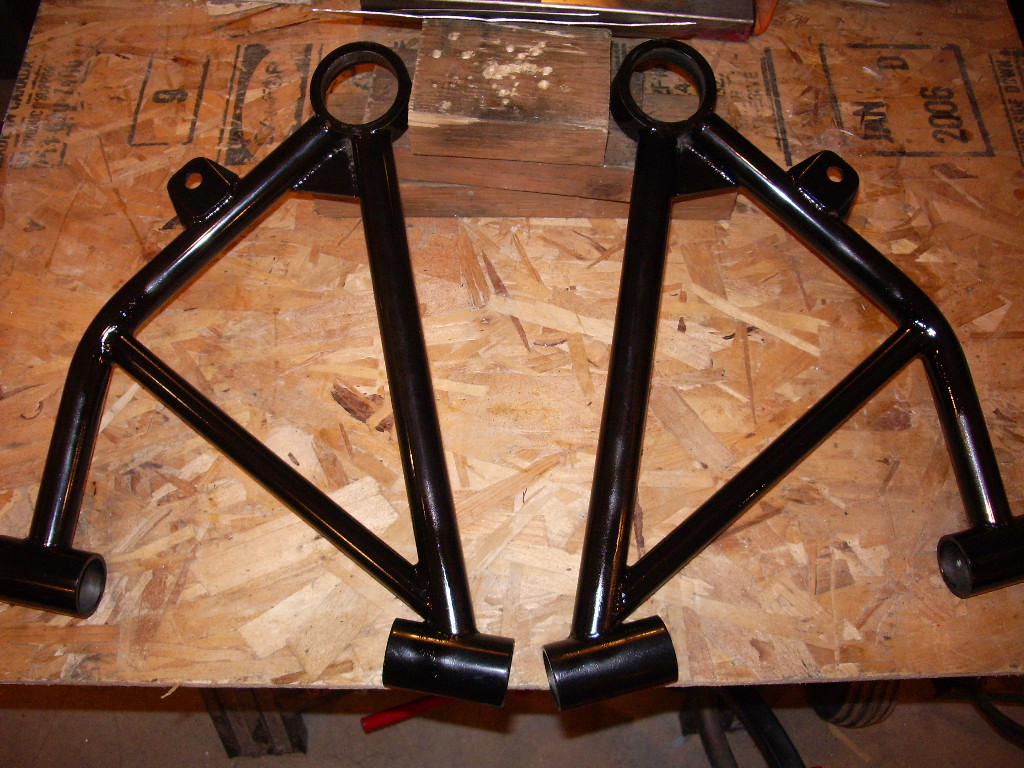

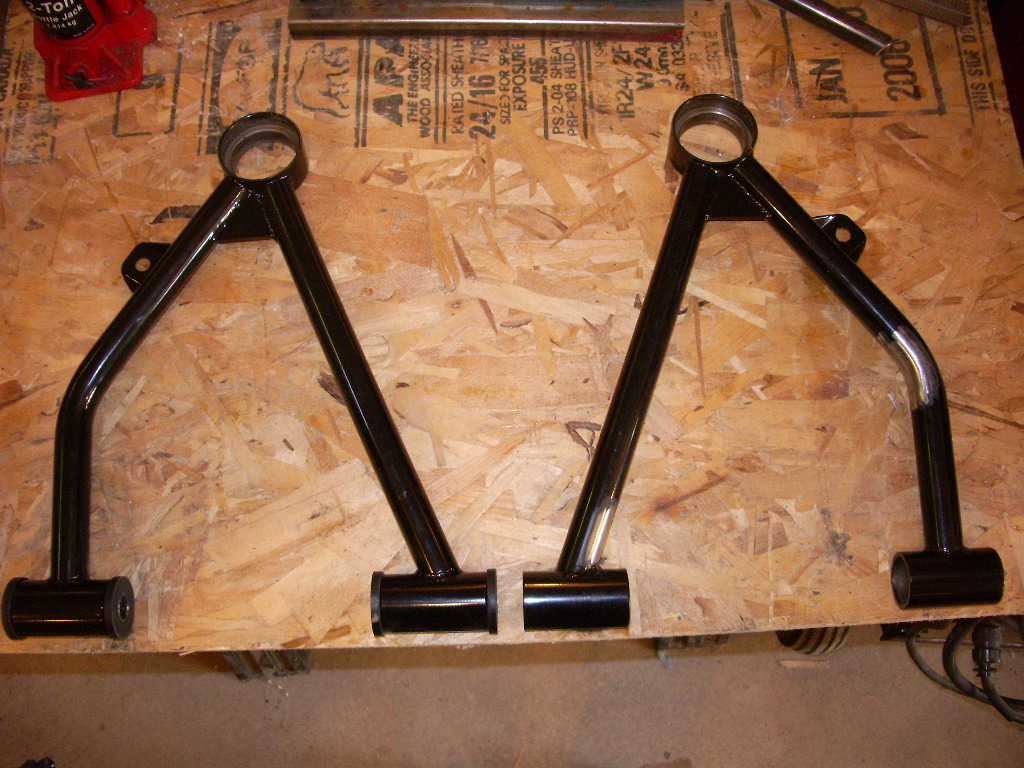

Had these TeamZ control arms and modified them with some chromoly gussets



[schwerdt1]

Gorgeous!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!



[347HO]

Posting these since I replied to another members post on building a rear end for maximum output.

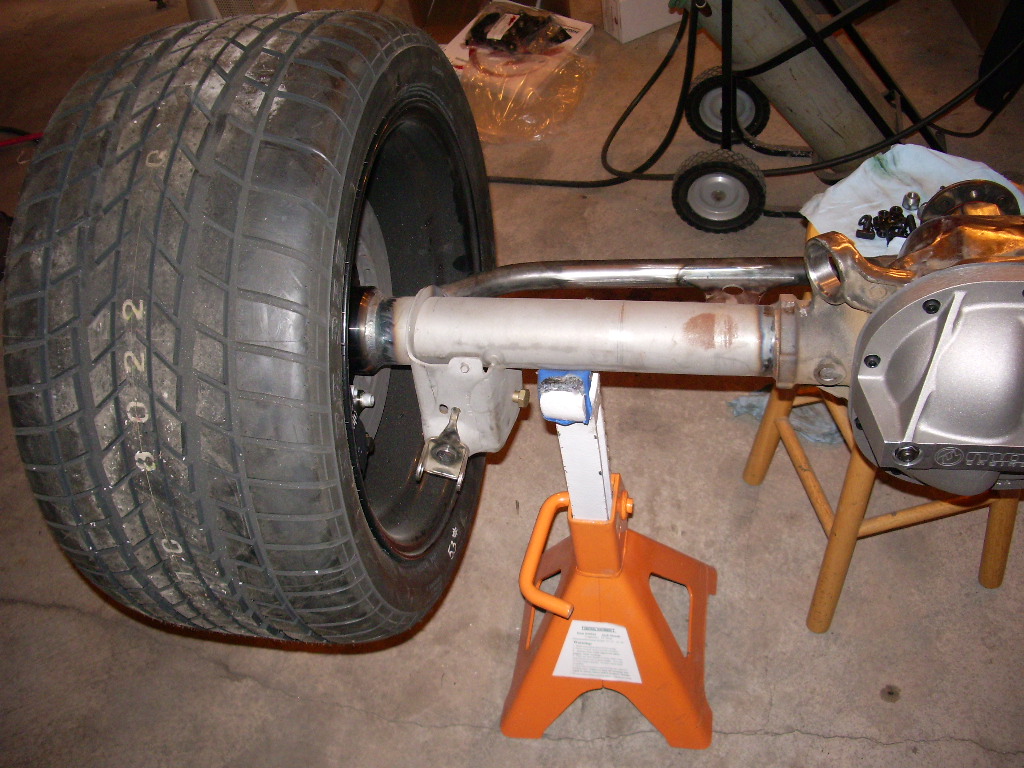

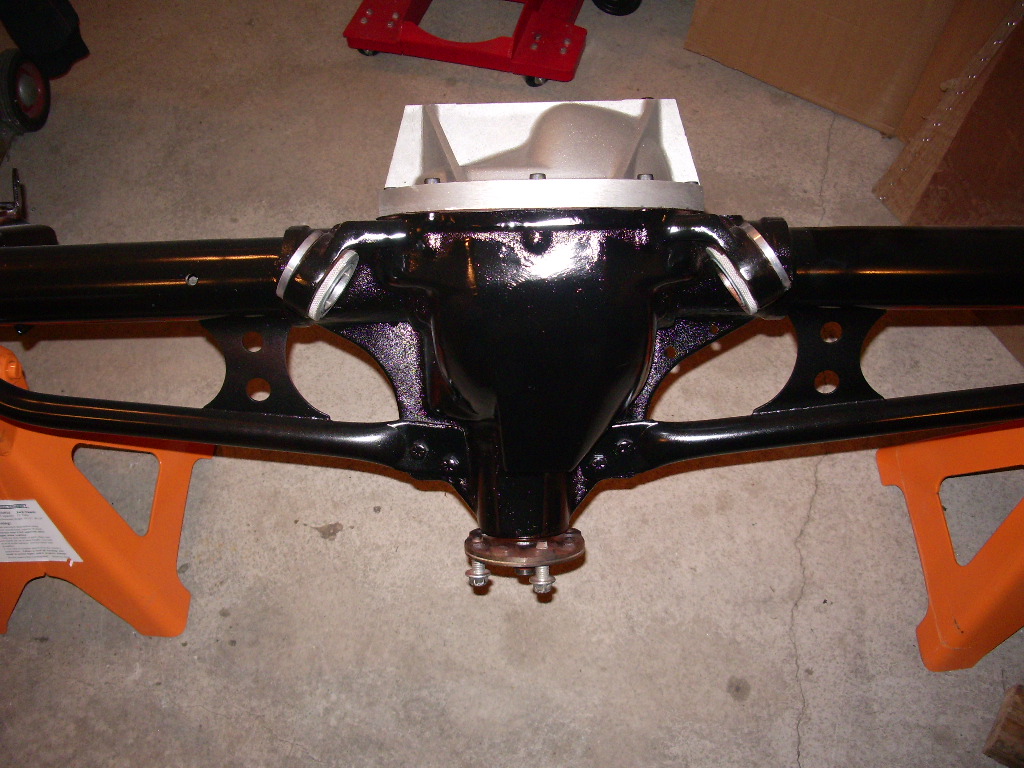

As stated, shorted 8.8, welded tubes with weld on gusset and 9" new style ends.



[schwerdt1]

Very nice!



[schwerdt1]

What block are you using?



[schwerdt1]

And, is that a custom color, or one someone carries? Looks fantastic in pics.



[347HO]

What block are you using?

Its a late 60's hecho in mexico.
Deburred, corner radiused, hand polished, 4corner square decked to 8.12", bored 4.060", align honed, billet cap and Half filled.
I'm sure I'm forgetting stuff... Its been a while.



[347HO]

And, is that a custom color, or one someone carries? Looks fantastic in pics.

I used my Akzo Nobel, Sikkens paint system to color match my 2010 F150 super crew. I think Ford calls it "ingot silver" or something...?
Doing all the fabrication, bodywork, paint prep and painting cost me appx $2500.00.
I would have estimated a customer $15,000.00 .
I assume a high end custom car shop would charge upwards of $40,000.00
